| एमओक्यू: | 1 |
| कीमत: | बातचीत योग्य |
| प्रसव अवधि: | 7-16 दिन |
| भुगतान विधि: | एल/सी, डी/ए, डी/पी, टी/टी |
| आपूर्ति क्षमता: | 10000pcs |

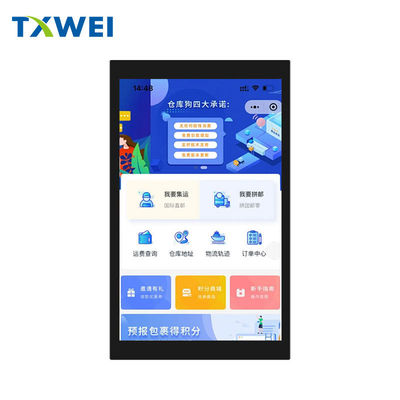

TXW700117S0-LX: Multi scene adaptation, defining a new benchmark for high-definition display
In the current era of rapidly increasing demand for diversified applications, TXW700117S0-LX, a display screen that combines high-definition display, excellent performance, and flexible applications, is becoming the new favorite of display solutions in various industries with a breakthrough momentum. This 7-inch display has redefined the standard of high-definition display with its excellent technical specifications and wide applicability.
|
ITEM |
Sandard value |
Unit |
|
LCD Type |
Normally Black |
-- |
|
Drive element |
TFT active matrix |
-- |
|
Number of pixels |
800*3RGB(H)X1280(V) |
Dots |
|
Pixel arrangement |
RGB Vertical Stripe |
-- |
|
Pixel Pitch (W*H) |
0.11775(H) X 0.11775(V) |
mm |
|
Active area |
94.20(H) x 150.72(V) |
mm |
|
Viewing direction |
ALL Viewing Type LCD |
-- |
|
TFT Driver IC |
ILI9881C |
-- |
|
TFT interface |
4lane MIPI interface |
-- |
|
Approx. Weight |
TBD |
g |
|
LCM Size(W*H*T) |
99.59(W) ×160.88(H) ×2.35(T) |
mm |
|
LCM Size+CTP (W*H*T) |
106.04(W) ×175.28(H) ×4.40(T) |
mm |
|
Touch structure |
G+G |
-- |
|
Touch Driver IC |
GT911 |
-- |
|
Touch Interface |
I2C |
-- |
High definition picture quality, delicate and detailed
The TXW700117S0-LX display screen adopts an ultra-high resolution of 800 * 1280, combined with IPS full view display technology, ensuring that the image is clear and accurate from any angle, and the color reproduction is accurate and error free. Whether it is fine chart display or dynamic video playback, they can be presented with ultimate clarity, meeting the strict requirements of high-precision display for unmanned vehicles, unmanned ship remote controllers, medical and industrial equipment.
Strong performance, stable and durable
Built in ILI9881C high-performance display chip, TXW700117S0-LX achieves an astonishing 1100nits brightness, ensuring clear and visible images even in strong outdoor environments without light interference. Meanwhile, its wide operating temperature range (-20 ° C to+70 ° C) and storage temperature range (-30 ° C to+80 ° C) enable this display screen to maintain stable operation even in extreme weather conditions, demonstrating extraordinary durability.
Sensitive touch and smooth interaction
Adopting advanced G+G touch technology and IIC touch interface, TXW700117S0-LX is equipped with ST1633I high-performance touch chip, achieving ultimate sensitivity and precision of touch control. Whether it's quick swiping to switch interfaces or fine clicking to select, users can receive instant and accurate responses, greatly improving their interaction experience and making operations more user-friendly.
Panoramic View of Application Fields
1,Mobile vehicles and remote control
▶ Unmanned vehicles/unmanned ships/unmanned aerial vehicle ground stations
▶ AGV/AMR vehicle terminal
▶ Fire trucks, mining trucks, port front cranes, railway shunting driver's cab
▶ Military shelters, tactical command vehicles, and police mobile police stations
2,Industrial Automation and Intelligent Manufacturing
▶Production line HMI, workstation Andon board, PLC/motion control teaching pendant
▶CNC machine tools, laser cutting, robot teaching boxes
▶Three dimensional warehouse handheld terminal, intelligent forklift flatbed
▶Visualization terminals for semiconductor, lithium battery, and photovoltaic clean workshops
3,Energy and Electricity (Outdoor/High Electromagnetic)
▶Photovoltaic inverters, energy storage EMS, charging stations, and human-machine interfaces for battery swapping stations
▶Substation/distribution room intelligent screen cabinet, ring main unit DTU
▶On site monitoring of wind turbine towers and offshore oil and gas drilling platforms
▶Grid dispatch console, nuclear power plant auxiliary control room
4,Medical Devices and Life Sciences
▶Operating room anesthesia machine, ventilator, monitor, POC ultrasound
▶Mobile DR, portable color ultrasound, endoscope cart
▶Hospital logistics robots, dispensing vehicles, intelligent hospital beds
▶Real time nucleic acid/vaccine cold chain recorder, makeshift hospital information terminal
5,Transportation and Public Safety
▶Subway/high-speed rail driver's desk, PIS passenger information screen, gate LCD
▶Airport baggage sorting monitoring, boarding bridge operation panel
▶Highway ETC, tunnel/bridge monitoring terminals
▶Emergency command vehicle, mobile fire pump room, border guard post
6,Smart Retail and Commercial Self Service
▶Outdoor smart vending machines, self-service coffee machines, self-service car washing machines
▶Explosion proof payment terminal for gas/hydrogen refueling stations
▶Express cabinets, cold chain storage cabinets, fresh food insulated cabinets
7,Smart City and Infrastructure
▶Smart light pole LED secondary screen, integrated environmental monitoring machine
▶Outdoor LED advertising machines, bus stop signs, and parking guidance screens
▶Water quality/level monitoring station, geological hazard warning terminal
8,Military and Aerospace Industry
▶Shipborne/airborne mission display console
▶Radar/communication cabin display and control terminal
▶Unmanned aerial vehicle ground station, satellite portable measurement and control station
9,Special Environmental Research
▶Polar scientific research station data monitoring
▶Unmanned observation points on the plateau
Deep sea ROV control cabin
Wide temperature range: From polar regions at -30 ℃ to deserts at+70 ℃, from shadowless lights in operating rooms to salt spray storms on offshore drilling platforms, TXW700117S0-LX is the preferred solution for display nodes that require "all-weather visibility, high reliability touch, and long-term stable supply".
The TXW700117S0-LX display screen has become a highly anticipated high-definition display solution in the market due to its high-definition image quality, powerful performance, sensitive touch, and wide applicability. It not only meets the urgent demand for high-quality displays in various industries, but also provides unlimited possibilities for future display technology innovation. Choosing TXW700117S0-LX means choosing a clear, efficient, and reliable display for the future, opening a new chapter in multi scene adaptation!
