| एमओक्यू: | 1 |
| कीमत: | बातचीत योग्य |
| प्रसव अवधि: | 7-16 दिन |
| भुगतान विधि: | एल/सी, डी/ए, डी/पी, टी/टी |
| आपूर्ति क्षमता: | 10000pcs |

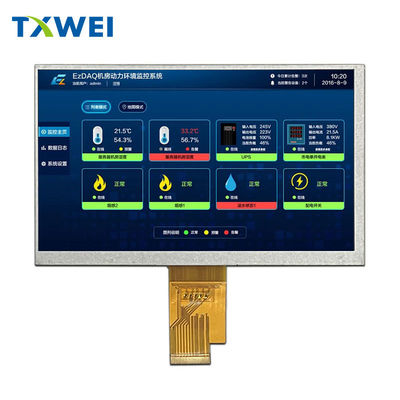

TXW700147N1 Industrial grade Display Screen Product Promotion Copy
7-inch high-definition industrial screen TXW700147N1: expert in stable visibility in harsh environments
Core selling points
Durable military grade: Working in a wide temperature range of -30 ℃ to 80 ℃, not afraid of extreme cold and heat, adapting to the extreme challenges of industrial scenarios
High definition IPS hard screen: 1024 × 600 resolution+IPS full view technology, clear and visible in complex lighting environments
Strong design: 5.56mm ultra-thin body paired with a compact size of 164.9 × 100mm, making embedded installation more flexible
|
ITEM |
Sandard value |
Unit |
|
LCD Type |
Normally Black |
-- |
|
Drive element |
TFT active matrix |
-- |
|
Number of pixels |
1024*3RGB(H)X600(V) |
Dots |
|
Pixel arrangement |
RGB stripe |
-- |
|
Pixel Pitch (W*H) |
0.1506(W)x 0.1432(H) |
mm |
|
Active area |
154.21 (W) × 85.92 (H) |
mm |
|
Viewing direction |
ALL O’CLOCK |
-- |
|
TFT Driver IC |
HX8282-A11/HX8696-A01 |
-- |
|
TFT interface |
LVDS Interface |
-- |
|
Approx. Weight |
TBD |
g |
|
LCM Size(W*H*T) |
165.00(W) x100.00(H) x5.80(T) |
mm |
Application scenarios
✓ Security monitoring: 24-hour uninterrupted display, accurate restoration of monitoring screen details
✓ Industrial HMI: Anti electromagnetic interference, ensuring stable operation of production line control terminals
✓ Special vehicles: 650nits high brightness, clear instrument data under sunlight
✓ Medical equipment: certified by medical standards to meet the disinfection environment requirements of the operating room
The TXW700147N1 is not a universal screen that can be used anywhere, but rather a Swiss military knife that is specialized in extreme environments. Below are six real-life scenarios to discuss:
Security Law Enforcement:
Scenario: Traffic police/urban management portable law enforcement device, outdoor gate face comparison terminal.
• Pain points: Backlight, side lighting, direct flashing lights at night.
• Solution: 650 nits high brightness+IPS 178 °, clear facial details under sunlight, no color cast when viewed from the side.
Agricultural machinery:
Scenario: Tractor, harvester, rice transplanter cockpit instruments.
• Pain points: slow start-up due to -10 ℃ frost, 5G vibration screen, scratches caused by dust cleaning.
• Solution: -30 ℃ low temperature with 0 delay lighting, internal full rubber frame shockproof, optional 3H scratch resistant cover plate on the surface.
Medical equipment:
• Scenario: Portable DR, mobile ultrasound, emergency transport monitor.
• Pain points: flicker under shadowless lights in the operating room, EMC issues.
• Solution: DC dimming without flicker, the whole machine has passed the IEC 60601-1-2 medical electromagnetic compatibility test.
Ships and Ports:
• Scenario: Deck navigation display and control, shore crane operation console.
• Pain points: salt spray at sea, ultraviolet radiation, low nighttime illumination.
• Solution: 96 hour salt spray test with zero corrosion, UV coating on the panel for anti-aging, and adjustable brightness in night flight mode.
Industrial HMI/PLC panel:
• Scenario: CNC machine tools, injection molding machines, logistics sorting consoles.
• Pain points: oil stains, glove touch, 24 × 7 operation.
• Solution: Surface AF anti fingerprint+optional capacitive touch wet hand/glove mode; 30000 hours backlight lifespan.
Special vehicle modification:
• Scenario: Fire trucks, mining trucks, military shelters.
• Pain points: -30 ℃ extremely cold start,+80 ℃ engine compartment high temperature, 1 G continuous vibration.
• Solution: Full temperature LCD formula, internal shock-absorbing copper pillar, wide voltage 9-36V input synchronous backlight drive.
Technical parameter highlights
• Display chip: HX8282A11 driver IC, smooth screen without residual images
• Interface standard: LVDS 8-bit 40PIN industrial universal interface
• Effective display area: 154.21 × 85.92mm golden ratio
