High definition 13.3-inch LCD touch screen 1920 * 1080 display screen EDP interface IPS screen LCD display screen

उत्पादों

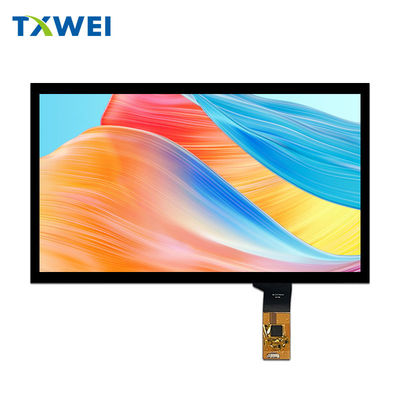

High definition 13.3-inch LCD touch screen 1920 * 1080 display screen EDP interface IPS screen LCD display screen

एमओक्यू:	1
कीमत:	बातचीत योग्य
प्रसव अवधि:	7-16 दिन
भुगतान विधि:	एल/सी, डी/ए, डी/पी, टी/टी
आपूर्ति क्षमता:	10000pcs

विस्तार से जानकारी

उत्पाद का वर्णन

विस्तार से जानकारी

उत्पत्ति के प्लेस

शेन्ज़ेन

ब्रांड नाम

TXWEI

प्रमाणन

CE FCC ROHS

मॉडल संख्या

TXW133016A0-LZ

दस्तावेज

पिक्सल की संख्या:

1920*1080

देखने की दिशा:

अटकलें

प्रदर्शन इंटरफ़ेस:

ईडीपी

1000 nits

सक्रिय क्षेत्र:

293.76*165.24

रूपरेखा आकार:

308*183.45*7.85 मिमी

परिचालन तापमान:

-20+70 ℃

भंडारण तापमान:

-30+80℃

स्पर्श प्रौद्योगिकी:

जी + जी

स्पर्श इंटरफ़ेस:

आईआईसी

स्पर्श चिप:

ILI2511

प्रमुखता देना:

13.3-inch LCD touch screen

IPS LCD display screen

EDP interface LCD screen

उत्पाद का वर्णन

TXW133016A0-LZ
13.3-inch Full-HD Industrial TFT-LCD Kit
1000 cd/m² Sunlight-Readable | G+G 10-Point Cap-Touch | 2-Lane eDP | -20 °C~70 °C Operating | 30 000 h LED Life
WHAT’S IN THE BOX
• TXW133016A0-LZ LCM (TFT panel + LED BLU + steel bracket)
• ILITEK 2511 projected-capacitive touch with 3 mm toughened glass
• 30 cm eDP 2-lane FPC (I-PEX 20455-040E-12)
• 30 cm USB-A touch cable (4-pin JST SHR-04V-S-B)
• RoHS & REACH report, factory calibration sheet, reliability test summary
WHY CHOOSE TXW133016A0-LZ
1000 cd/m² Real Brightness – measured with LCD + CTP mounted, not “panel only”. No hood needed under 70 000 lux sunlight.
All-View Technology – 89°/89°/89°/89° contrast > 1000:1 at center; no gray inversion, no color washout in portrait or landscape.
True Flat G+G Touch – 7.85 mm total stack, 3H anti-glare surface, 10-point multi-touch, supports 1 mm latex glove and rain-drop rejection.
Wide-Temp Design – -20 °C cold-boot (no heater), +70 °C continuous (no derating); IC & FPC use -40 °C~85 °C grade components.
Industrial EMC Ready – eDP differential pairs 100 Ω ±10 %, common-mode choke on FPC; LED driver 400 kHz spread-spectrum, CISPR-32 Class B pre-compliant.
Long Life & Serviceability – 30 000 h LED @ Ta 50 °C, L70; LED rail 24 V (same as popular LVDS kits) for drop-in upgrade; backlight unit field-replaceable in 4 screws.
DETAILED SPECIFICATIONS
Panel
Size / Aspect : 13.3" diagonal, 16:9
Resolution : 1920 (H) × RGB × 1080 (V) = 6.22 M sub-pixels
Pixel Pitch : 0.153 mm × 0.153 mm
Active Area : 293.40 mm × 165.00 mm
Display Mode : Normally Black, Transmissive
Color Gamut : 72 % NTSC (CIE1931)
Surface Luminance : 1000 cd/m² typ. (center, 13-point average ≥ 900 cd/m²)
Contrast Ratio : 1000:1 (typ.), 600:1 @ 45 °C, 85 % RH
Response Time : 25 ms (Tr+Tf, 25 °C)
Viewing Angle : 89° all directions (CR>10)
Backlight : WLED 14 strings × 2 chips, 420 mA total, PWM 200 Hz-20 kHz dimming
Touch
Technology : Projected Capacitive, Glass-Glass
Sensor Pattern : 23 Tx × 41 Rx diamond
Controller : ILITEK ILI2511 (48-pin QFN, -40 °C~85 °C)
Interface : USB 2.0 Full-Speed HID, Microsoft & Android native driver
Touch Points : 10 simultaneous
Report Rate : 100 Hz (single), 80 Hz (10-point)
Surface Hardness : ≥ 6H pencil, 500 g force
Light Transmission : ≥ 87 % @ 550 nm
ESD : Contact ±8 kV, Air ±15 kV, IEC 61000-4-2 level 4
Electrical
Logic Supply : 3.0 V – 3.6 V (3.3 V typ.), ripple ≤ 100 mV
LED Supply : 24.3 V – 29.7 V, 420 mA typ., 11 W max.
eDP Interface : 2 lanes, 1.62 / 2.7 Gbps per lane, HBR1, ASSR only
Color Depth : 6-bit + Hi-FRC → 8-bit, 16.7 M colors
Backlight Ctrl : PWM positive logic, 0 % @ 0 V, 100 % @ 3.3 V
Power Consumption
Panel only : 2.5 W (all white, 1000 cd/m²)
With CTP : 3.0 W (backlight 100 %, touch active)
Stand-by : < 10 mW (backlight off, eDP sleep)
Mechanical
LCM Outline : 307.6 mm (W) × 183.05 mm (H) × 5.4 mm (T)
CTP Outline : 308.0 mm × 183.45 mm × 2.45 mm (cover glass)
Total Height : 7.85 mm (without bezel)
Mounting Holes : 4 × Ø 2.8 mm, 298.6 × 173.8 mm on bracket
Weight : 390 g (LCM), 480 g (LCM+CTP)
IP Rating : Front IPX1 drip-proof with optional gasket
Shock / Vibe : 50 g 11 ms half-sine, 10-500 Hz 3 g 1 oct/min (operational)
Environmental
Operating Temp : -20 °C to +70 °C, 20 % – 90 % RH non-condensing
Storage Temp : -30 °C to +80 °C
Thermal Shock : -20 °C 30 min ↔ +70 °C 30 min, 10 cycles, function OK
Altitude : 10 000 ft (3 048 m) operating
MTBF : > 50 000 h @ 25 °C (MIL-HDBK-217F, Parts count)
Reliability Tests (summary)
96 h @ 80 °C storage
96 h @ 70 °C operating
96 h @ 60 °C / 90 % RH
96 h @ -30 °C storage
96 h @ -20 °C operating
10 g vibration, 30 min XYZ
ESD, surge, burst per IEC 61000-4 suite
All samples pass: no line defect, no polarizer bubble, touch linearity ≤ 1 %, luminance drop ≤ 10 %.
PINOUT & CABLING
eDP FPC (20455-040E-12)
1 GND
2 ML0-
3 ML0+
4 GND
5 ML1-
6 ML1+
7 GND
8 AUX CH-
9 AUX CH+
10 GND
11 HPD (hot-plug detect)
12 3.3 V
13 3.3 V
14–20 NC / GND
Touch USB pigtail
Red 5 V
White D-
Green D+
Black GND
Shield tied to mounting hole
COMPATIBILITY & DRIVER
• Intel / AMD / NXP / Rockchip / MediaTek SOCs with embedded DisplayPort v1.2
• Linux kernel ≥ 3.19 has eDP aux channel driver; touch HID generic
• Windows 10/11 auto-detect 1920×1080 60 Hz EDID; touch native HID multi-touch
• Android 8+ supports 10-point HID, no ilitek ko required
For boards with only LVDS: TXW offers LT7911D converter board (2-lane eDP in ↔ single/dual LVDS out) as accessory.
ACCESSORIES (sold separately)
LVDS-to-eDP adapter, 51 × 32 mm, 5 V or 3.3 V
LED driver board 24 V/1 A, 94 % efficiency, DIP pot for current trim
Anti-reflection / anti-fingerprint glass, 1.1 mm, < 1 % haze
IP65 front frame with EMI mesh, 314 × 190 mm, 8 stainless screws
30-pin 0.5 mm eDP延长线, 50 cm / 100 cm
MECHANICAL DRAWING & 3D
STEP & PDF available on txwlcd.com → “Resources” → “Mechanicals”.
DXF outlines in mm, tolerance ±0.2 mm; glass edge 0.2 mm chamfer 45°.
PACKAGING & LOGISTICS
10 pcs per ESD tray, vacuum sealed
2 trays per carton (20 pcs), 45 × 32 × 18 cm, 11 kg gross
HS-Code: 8531.10, Made in China
MOQ: 100 pcs, lead-time 4–6 weeks
Warranty: 24 months from ship date, free replacement for pixel/BL defects > 3 bright or 5 dark pixels
REGULATORY & ENVIRONMENT
RoHS 2.0, REACH 240 SVHC compliant
CE self-declaration: EN 55032, EN 55035, EN 62368-1
FCC Part 15 Class B (pending)
Conflict-mineral free, CMRT 6.31 on file
Recyclable glass & aluminum, < 0.1 % PFAS
