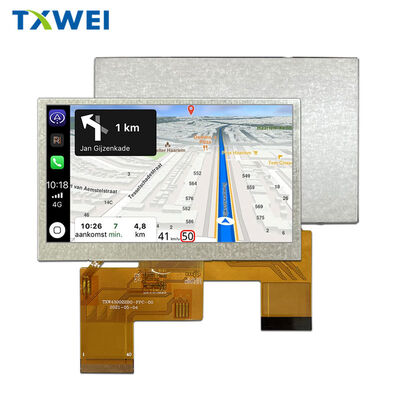

4.3 inch LCD screen 1200 high brightness 800*480 outdoor high brightness equipment display electric vehicle dashboard display screen

उत्पादों

4.3 inch LCD screen 1200 high brightness 800*480 outdoor high brightness equipment display electric vehicle dashboard display screen

एमओक्यू:	1
कीमत:	बातचीत योग्य
प्रसव अवधि:	7-16 दिन
भुगतान विधि:	एल/सी,डी/ए,डी/पी,टी/टी
आपूर्ति क्षमता:	10000PCS

विस्तार से जानकारी

उत्पाद का वर्णन

विस्तार से जानकारी

उत्पत्ति के प्लेस

शेन्ज़ेन

ब्रांड नाम

TXWEI

प्रमाणन

CE FCC ROHS

मॉडल संख्या

TXW430047B0

दस्तावेज

पिक्सल की संख्या:

800*3RGB ((H) X480 ((V)

आदर्श समय:

आईपीएस

प्रदर्शन इंटरफ़ेस:

आरजीबी 24 बिट

1200 निट्स

सक्रिय क्षेत्र:

95.04(एच) * 53.856(वी)

रूपरेखा का आकार:

105.5*67.2*2.9मिमी

परिचालन तापमान:

-30+80℃

भंडारण तापमान:

-30+85 ℃

पिनों की संख्या:

40पिन

एलसीएम चालक आईसी:

एसटी72568

प्रमुखता देना:

4.3 inch LCD display screen

1200 high brightness TFT LCD

electric vehicle dashboard display

उत्पाद का वर्णन

TXW430047B0

4.3" Ultra-Bright Wide-Temperature Display

1200 nits | -30°C~+80°C | IPS | 800×480 | 16:9

▎Short

◆ Sunlight-readable. Freeze-proof. Industrial-grade.

The TXW430047B0 delivers 1200 nits brightness in a 4.3-inch 16:9 format. Built for outdoor devices, EV dashboards, and extreme environments where ordinary screens fail.

▎▎Medium

◈ Brightness That Beats the Sun

1200 nits. Not 500. Not 800. Twelve hundred.

Direct sunlight. Glare. Reflections. Cut through them all.

Outdoor kiosks. Motorcycle dashboards. Field equipment. Readable. Always.

◈ Temperature Extremes, Conquered

-30°C cold start. Arctic deployments. Frozen storage monitors.

+80°C continuous operation. Desert heat. Engine compartments. Industrial ovens.

No thermal shutdown. No performance drift.

◈ Wide View, Right View

IPS technology. 178° viewing angle.

Portrait. Landscape. Tilted. Above. Below.

Colors stay true. Contrast holds. No gray inversion. No color washout.

▎▎▎Long

◇ The Display Core

800 × 480 resolution. 95.04 × 53.856 mm active area. RGB stripe pixels.

Sharp data. Smooth graphics.

16:9 native widescreen. No letterboxing. No scaling artifacts.

ST72568 driver. Mature. Stable. Proven worldwide.

RGB 24-bit interface. 40 pins. Direct connection. No bridge chips.

◦ Mechanical envelope: 105.5 × 67.2 × 2.9 mm. Compact. Slim. Design-flexible.

◇ The Backlight

16 LEDs. 28-30V. 40mA. Efficient. Long-lived.

50,000 hours to half brightness.

◦ PWM dimming. Adapt to ambient. Extend life. Save power.

◇ Built Hard

Operating: -30°C to +80°C. Sixty-degree span.

Storage: -30°C to +85°C. Survives uncontrolled conditions.

◦ Normally black mode. Dark backgrounds. Power saved. Contrast improved. Eye strain reduced.

◇ Made Right

TXW Display. In-house engineering. Direct production.

99.7% outgoing quality.

◦ Dedicated support. Responsive service.

Direct manufacturer. No broker. No trader.

◇ Goes Where

◊ Outdoor High-Brightness

Digital signage. Parking terminals. Ticket machines. Public info displays.

◦ 1200 nits beats open sky. Wide temp handles seasons. Industrial reliability cuts service calls.

◊ Electric Vehicle Dashboards

Motorcycles. Scooters. Light EVs.

◦ Compact 4.3" fits handlebar clusters. Sunlight readable for day riding. Wide angle for rider position. Cold-start reliable for winter mornings.

◊ Industrial & Medical Control

Factory HMI. Portable test gear. Medical devices in uncontrolled environments.

◦ -30°C startup for cold chain. +80°C operation for sterilization zones.

◊ Freezing & Refrigeration

Cold storage. Blast freezers. Refrigerated transport.

◦ Works where operators wear insulated gloves. Breath condenses. Display specified for what it monitors.

◊ Access Control & Security

Outdoor entry panels. Gate operators. Perimeter stations.

◦ 24/7 visibility. Vandal-resistant mountable. All-weather reliable.
